Hikvision Acusense DVR iDS-7100HQHI-M1/T – 4, 8 & 16 Channel

Detailed Product Description

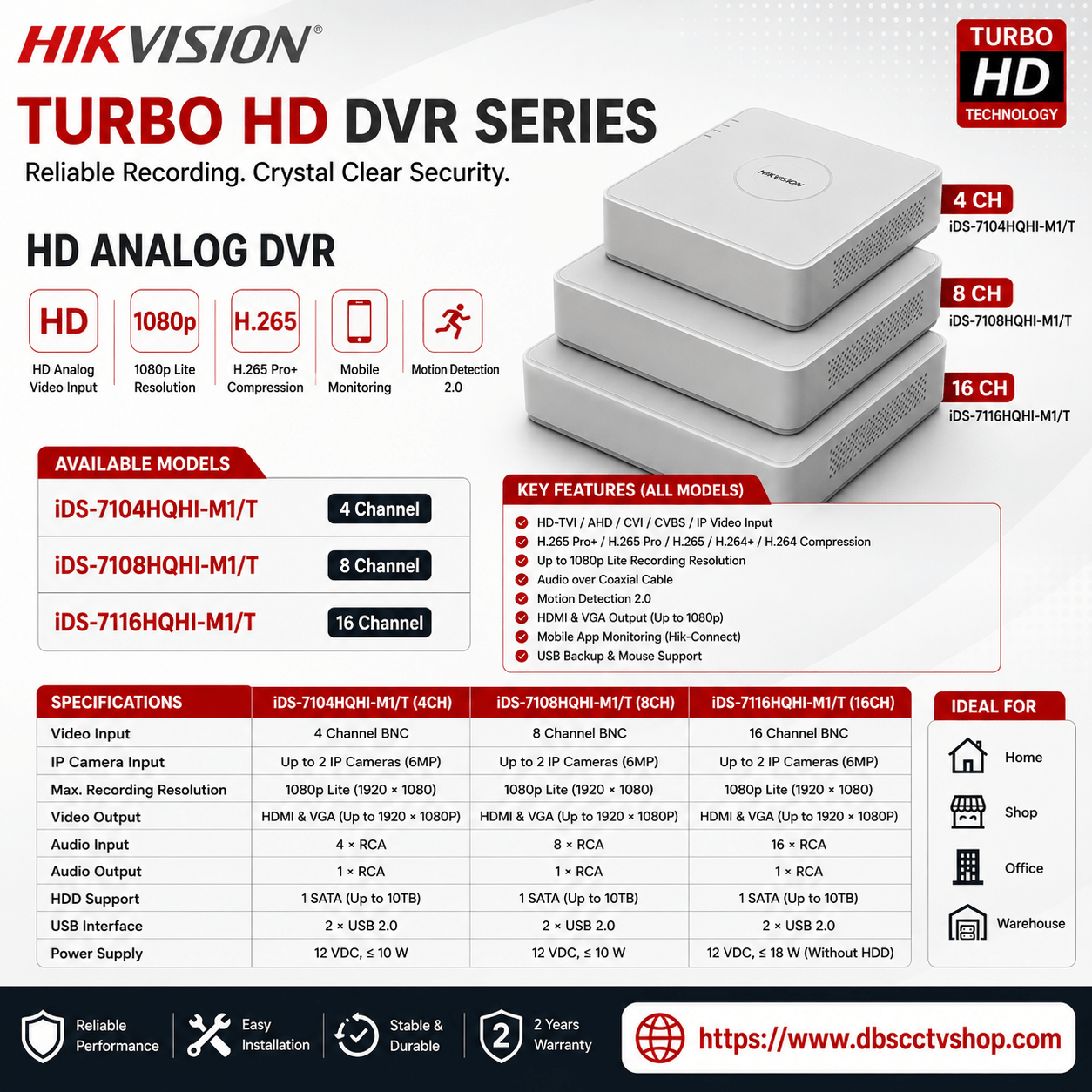

The Hikvision iDS-7100HQHI-M1/T Series is a range of intelligent AcuSense digital video recorders available in 4-channel, 8-channel and 16-channel variants.

Deep-learning-based Motion Detection 2.0 identifies human and vehicle targets and helps reduce false alarms caused by movement from leaves, lights and other non-target objects.

The DVR supports HDTVI, AHD, CVI, CVBS and IP camera inputs, making it suitable for new installations and upgrades to existing analog CCTV systems.

H.265 Pro+ video compression helps reduce storage usage and bandwidth requirements while maintaining recording quality. Audio over Coax allows compatible cameras to transmit video and audio through the same coaxial cable.

The recorder supports 3K/5MP Lite encoding and IP camera inputs with resolutions up to 6MP. One SATA interface supports a surveillance hard disk with a capacity of up to 10TB.

Users can select the appropriate model based on the required number of camera channels:

• 4 Channel: iDS-7104HQHI-M1/T
• 8 Channel: iDS-7108HQHI-M1/T
• 16 Channel: iDS-7116HQHI-M1/T

A surveillance hard disk is not included unless specifically mentioned in the selected package.

Key Features

• Available in 4, 8 and 16-channel variants
• AcuSense intelligent surveillance technology
• Motion Detection 2.0
• Human and vehicle classification
• Deep-learning-based perimeter protection
• H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression
• HDTVI, AHD, CVI, CVBS and IP video inputs
• Audio over Coax support
• Encoding up to 3K/5MP Lite at 12fps
• IP camera resolution support up to 6MP
• HDMI and VGA video output
• One SATA hard-disk interface
• Surveillance HDD support up to 10TB
• Remote viewing through Hik-Connect
• Suitable for homes, shops, offices and commercial properties

Channel Variant Comparison

Technical Specifications
