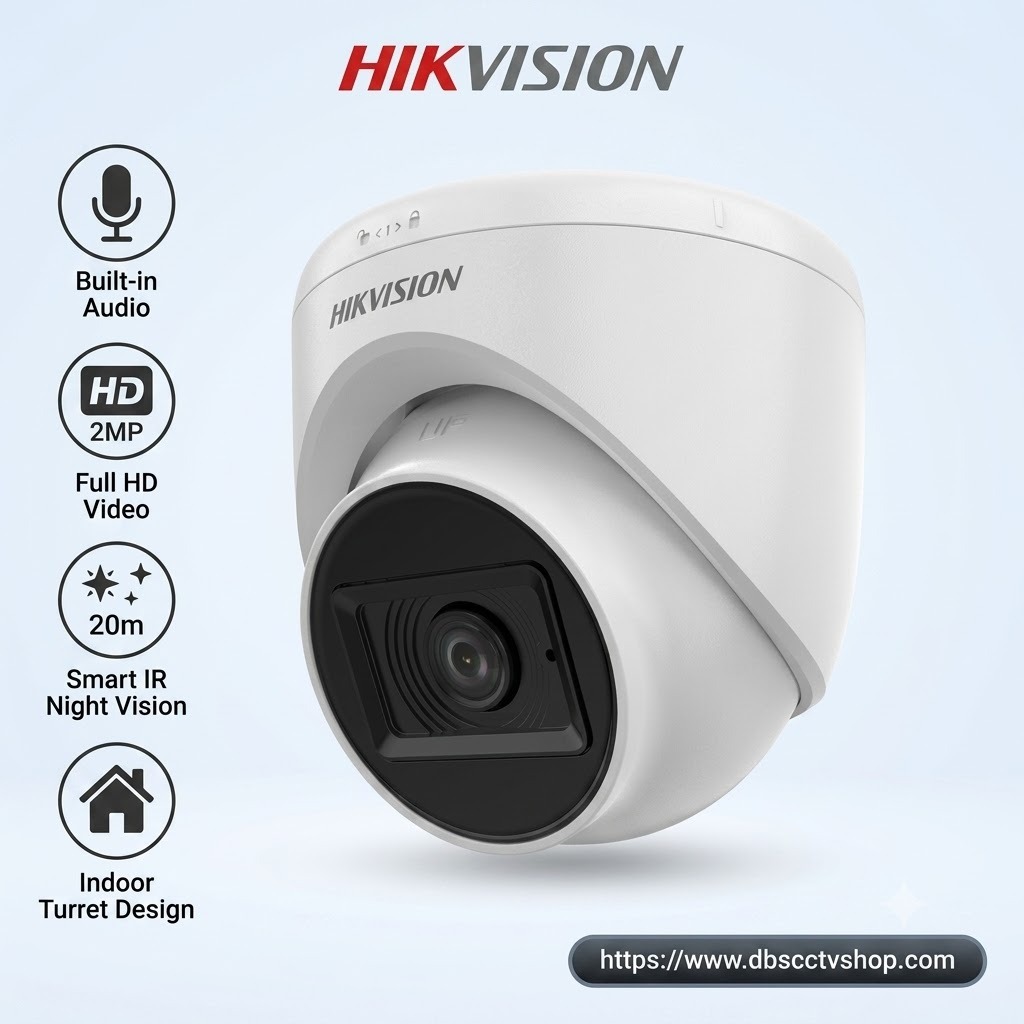

Detailed Product Description: Overview Enhance your indoor security with the Hikvision DS-2CE76D0T-ITPFS, a compact 2MP turret camera that combines high-definition video with integrated audio. This camera is designed for simple installation and reliable performance in residential and commercial indoor environments.
High-Quality Video and Audio Featuring a 2MP CMOS sensor, this camera delivers sharp Full HD 1080p resolution. The standout feature is its built-in microphone, which transmits high-quality audio over the same coaxial cable used for video (Audio over Coax), simplifying wiring and reducing installation costs (requires a compatible Hikvision DVR).
Superior Night Vision and Durability Equipped with Hikvision’s advanced EXIR 2.0 technology, the DS-2CE76D0T-ITPFS provides clear and efficient infrared night vision up to 20 meters, even in complete darkness. The turret design allows for flexible angling during installation.
Key Features
-
2 MP coaxial audio camera
-
Enhancing safety with discreet and economical built-in microphone
-
Transmits audio over coaxial cable
-
High quality imaging with 2 MP, 1920 × 1080 resolution
-
2.8 mm, 3.6 mm fixed focal lens
-
Up to 20 m IR distance for bright night imaging
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Technical Specifications
-
Image Sensor: 2 MP CMOS
-
Max. Resolution: 1920 (H) × 1080 (V)
-
Signal System: PAL/NTSC
-
Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
-
Shutter Time: PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
-
Lens: 2.8 mm, 3.6 mm fixed lens
-
Focal Length & FOV: 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°; 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
-
Lens Mount: M12
-
Day & Night: ICR
-
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
-
Image Mode: STD/HIGH-SAT
-
Image Settings: Brightness, Sharpness, Mirror, Smart IR
-
Frame Rate: TVI: 1080P@30fps, 1080P@25fps; AHD: 1080P@30fps, 1080P@25fps; CVI: 1080P@30fps, 1080P@25fps; CVBS: PAL/NTSC
-
Wide Dynamic Range (WDR): Digital WDR
-
White Balance: Auto/Manual
-
AGC: Yes
-
Video Output: Switchable TVI/AHD/CVI/CVBS
-
Audio Input: Built-in Mic
-
Material: Plastic
-
Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
-
Weight: Approx. 140.5 g (0.31 lb.)
-
Power Supply: 12 VDC ± 25% (Power consumption: Max. 2.7 W)
-
IR Range: Up to 20 m
