Detailed Product Description

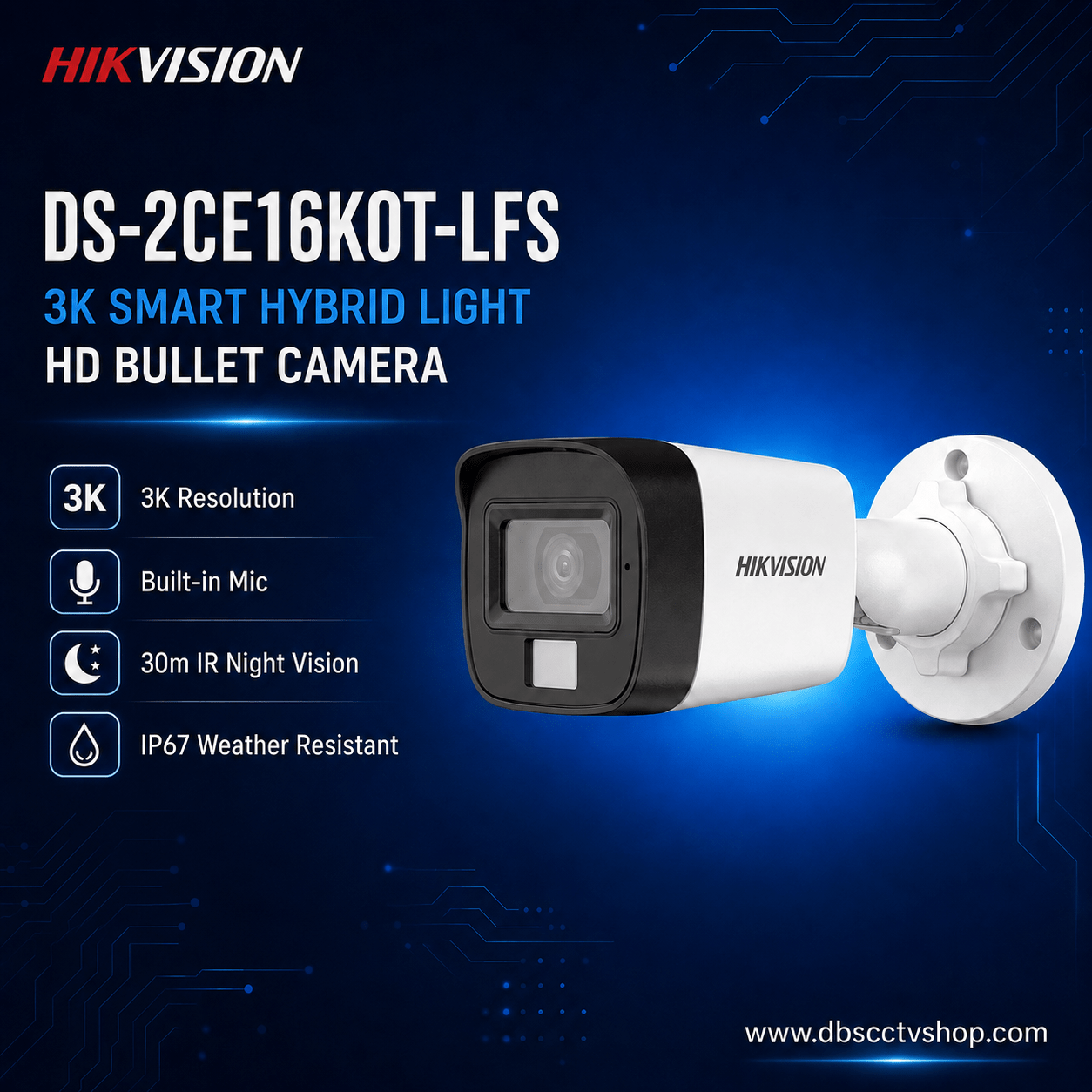

The Hikvision DS-2CE16K0T-LFS is a 3K Smart Hybrid Light HD analog bullet camera designed for homes, shops, offices, apartments, warehouses and outdoor surveillance applications.
Its 3K CMOS image sensor delivers high-quality video at a maximum resolution of 2960 × 1665 pixels. It supports video output through TVI, AHD, CVI and CVBS, making it compatible with various analog HD surveillance systems.
Smart Hybrid Light technology provides flexible night monitoring using infrared and white illumination. The infrared light offers black-and-white night imaging at distances up to 30 metres, while the white light provides colour night imaging up to 20 metres.
The camera includes a built-in microphone and supports Audio over Coax, allowing video and audio to be transmitted through the same coaxial cable when connected to a compatible DVR.
Image-enhancement technologies such as Digital WDR, BLC, HLC and digital noise reduction help produce clearer images under difficult lighting conditions.
Its durable metal body and IP67 water-and-dust-resistant rating make the camera suitable for both indoor and outdoor installation.
Key Features
- 3K high-resolution HD analog bullet camera
- Maximum resolution: 2960 × 1665 pixels
- Smart Hybrid Light technology
- Up to 30m infrared night vision
- Up to 20m white-light illumination
- Colour night imaging using white light
- Built-in microphone
- Audio over Coax support
- 2.8mm or 3.6mm fixed-lens variants
- TVI, AHD, CVI and CVBS switchable output
- Digital WDR
- BLC and HLC image enhancement
- ICR day-and-night switching
- Smart IR
- Durable metal housing
- IP67 water-and-dust resistance
- Suitable for indoor and outdoor surveillance
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-2CE16K0T-LFS |
| Camera type | HD Analog Fixed Mini Bullet Camera |
| Image sensor | 3K CMOS |
| Maximum resolution | 2960 × 1665 |
| Maximum frame rate | 3K at 20fps |
| Minimum illumination | 0.01 Lux at F2.0, AGC ON |
| Illumination at night | 0 Lux with supplemental light |
| Lens options | 2.8mm or 3.6mm fixed lens |
| Lens mount | M12 |
| 2.8mm field of view | H: 104.9°, V: 67.3°, D: 129.8° |
| 3.6mm field of view | H: 81.3°, V: 50.7°, D: 102.4° |
| Day and night | ICR |
| Supplemental light | IR and white light |
| IR distance | Up to 30 metres |
| White-light distance | Up to 20 metres |
| Video output | TVI/AHD/CVI/CVBS switchable |
| Audio | Built-in microphone |
| Audio transmission | Audio over Coax |
| Wide dynamic range | Digital WDR |
| Image enhancement | DWDR, BLC, HLC and Global |
| White balance | Auto/Manual |
| Angle adjustment | Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360° |
| Power supply | 12V DC |
| Protection rating | IP67 |
| Housing material | Metal |
| Operating temperature | −40°C to 60°C |
| Dimensions | 138.8 × 70mm |
| Weight | Approximately 270g |
